Why this problem matters now

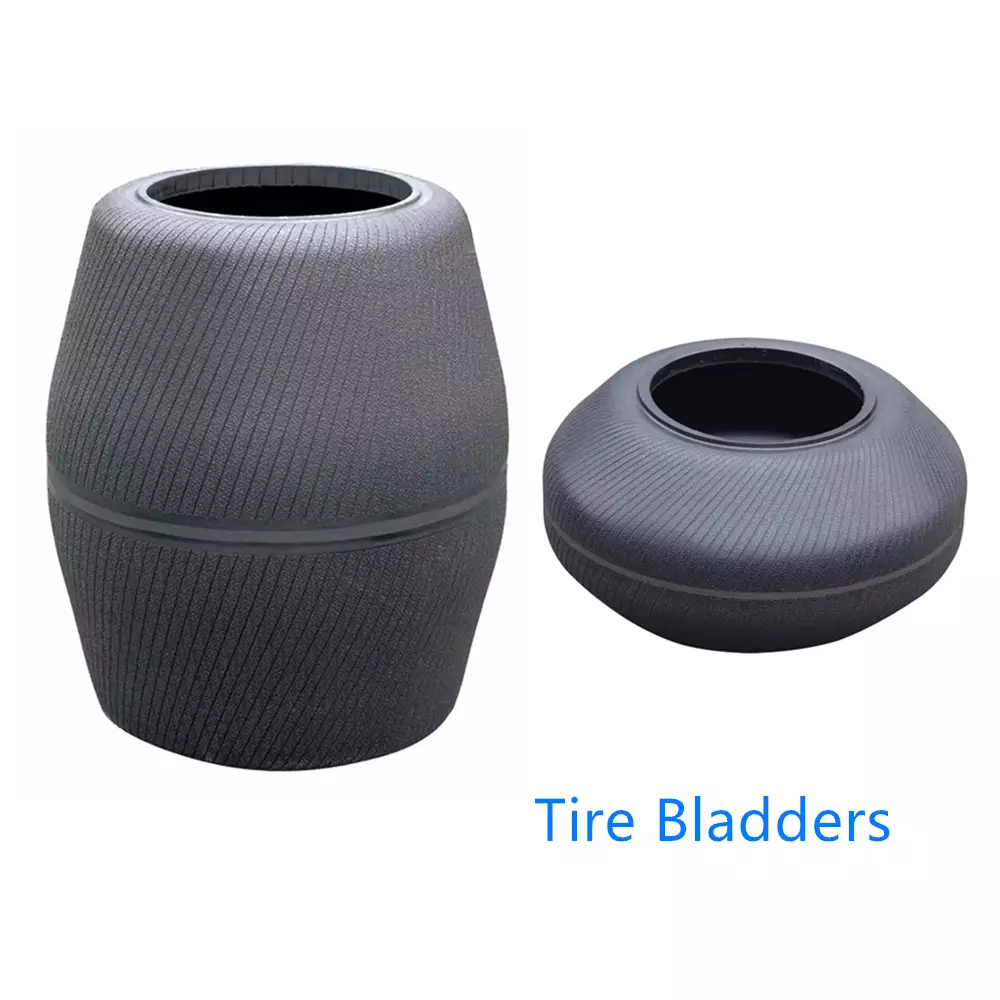

Tire bladder molding often fails where specification vagueness meets tight tolerances: inconsistent clamping force and poor shot accuracy translate directly into scrap, rework, and delayed runs. That’s the practical problem this playbook tackles—root causes and targeted fixes, not abstract theory. For engineers specifying machines, the right choices in machine dynamics and control systems reduce cycle variability and improve surface integrity for bladder parts. For reference on tailored machines and downstream support, see rubber molding solutions. EEAT mode: expert-guided technical advice anchored to real industrial practice in historic tire hubs such as Akron, Ohio, where manufacturers refined bladder molding routines under high-volume constraints.
Pinpointing the core technical failures
The recurring failures break down into two technical clusters: unstable clamping force and shot inconsistency. Clamping force that’s oversized or underspecified damages the mold cavity or lets flash form. Shot accuracy problems—variations in injection pressure, shot volume, or melt temperature—create internal voids or uneven wall thickness. Both issues raise reject rates. You’ll see machine-build choices trace directly to these symptoms: platen rigidity, clamp control loop frequency, screw design, and the presence or absence of valve-gate or pressure-regulation systems.
Parameters to prioritize when specifying equipment
Focus on measurable, verifiable items rather than vendor marketing lines. Key parameters include:
– Clamping force range and platen stiffness rated for your maximum back pressure. – Closed-loop control for injection pressure and shot size to hit shot accuracy within target tolerance. – Mold cooling capability and temperature control responsiveness for consistent cure and dimensional stability. – Servo-driven pumps or precision screw drives to reduce shear and maintain shot repeatability.
These features interact: a stable injection pressure control loop reduces the need for compensatory clamping force increases—and that relationship matters during run-rate scaling.
Common specification mistakes and practical fixes
Many engineers default to oversizing clamping force “just in case”—that raises energy use and can distort tooling. Others under-specify control bandwidth and then blame material for variability. Avoid both. Specify servo-driven hydraulics for predictable force application, and require closed-loop controllers that log injection pressure and shot volume. Calibrate shot accuracy targets to process capability: specify ±1–2% shot-volume repeatability, and validate on your material across expected melt temp ranges. Small habit: demand an on-site acceptance test that runs your most challenging mold cycle.
Comparing machine architectures
There are trade-offs between hydraulic, hybrid, and all-servo machines. Hydraulics still offer peak force density at lower cost; servos deliver repeatability and energy efficiency; hybrids sit between. Compare along three vectors: dynamic response (for clamping adjustments), control granularity (for shot accuracy), and maintenance footprint. For custom requirements—special barrel geometry, multi-shot sequences—look into providers who offer tailored control packages; many vendors now describe these as custom injection molding solutions to reflect integrated design and tooling support.
Implementation checklist before purchase
Before signing, confirm these on the factory floor or during FAT:
– Verify platen parallelism under full clamp load. – Review control logs for injection pressure stability across 100+ cycles. – Test with representative compound and measure wall-thickness repeatability and cure indicators. – Inspect servo/hydraulic response time and the controller’s capacity to handle PID loops and adaptive control.
Three golden rules for final selection
Choose machines using these critical evaluation metrics:
1) Process Stability Index: require supplier data showing shot-to-shot deviation across a minimum of 200 cycles under representative conditions. 2) Force-to-Rigidity Match: ensure specified clamping force is supported by platen stiffness values and validated deflection data at max load. 3) Control Traceability: insist on logged, exportable injection pressure and shot-volume traces for SPC and root-cause analysis.
Those metrics will guide you to suppliers who deliver predictable production and lower lifecycle cost. For integrated solutions that tie specification to installation and ongoing support, consider how a partner aligns technical controls with tooling and scheduling—this is where value compounds in real operations. HWAYI. —
