Where Laser Rigs Lose Time and Trust
Define the core issue first: reliability under load. You roll into a mid-size arena, crew on schedule, stage clock ticking. Laser lights are queued to open the first drop. Yet the first tests reveal tiny hitches—DMX latency edges past 30 ms, scanners warm up unevenly, and beam divergence drifts at distance (annoying, right?). Many setups treat laser show equipment as a fixed “box,” not a system of optics, power, and control nodes. The result is micro-failures that stack into visible noise. Data from field logs often points to three repeat offenders: thermal management gaps, power converters starved under peak load, and shaky signal integrity over long runs. So the question is simple: if the rig works on paper, why does it wobble on stage?
Why do rigs still fail?
Because traditional fixes chase symptoms. Teams swap cables, bump scanner speed, or tweak ILDA scaling. Look, it’s simpler than you think—and a bit deeper. Galvanometer scanners need stable headroom, not just nominal amperage. Poor grounding blooms jitter. IP-rated housings help, but without airflow planning, heat soak throttles output. And in touring, quick clamps shift, so optical alignment drifts (— funny how that works, right?). The hidden pain point is coordination: control software, edge computing nodes, and safety interlocks must hit time with the same clock. When they don’t, your bright moment turns into a “nearly there” moment. The cure begins with system thinking: power, signal, optics, and cooling locked as one, not four separate chores.
Smarter Builds: New Principles and Practical Gains

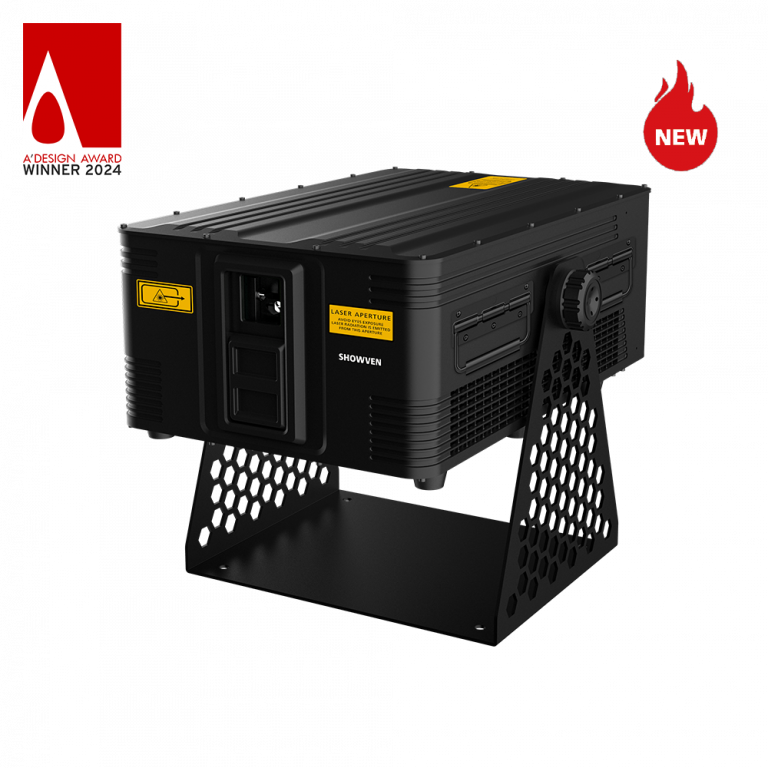

Now pivot to what works better and why. New control stacks push timing closer to the source, using lightweight edge processing near the projectors to shave jitter and stabilize frames. That shift lowers packet loss and keeps scan angles consistent under dynamic content. Pair it with adaptive thermal maps and you keep output at spec without clipping. A modern laser light show machine also benefits from layered safety interlocks and cleaner ground paths, so your scanners don’t fight noise. Compared to the “bigger PSU, faster fan” legacy fix, these principles tune the whole chain—optics, drivers, firmware, and network—so brightness stays even, and frames stay crisp across the bowl. And yes, routing matters: shorter ILDA or network hops, shielded runs, and measured return loss cut artifacts before they show up in the air.
What’s Next
Expect more predictive control: rigs that watch duty cycle, forecast heat, and nudge content density before drift appears. Touring crews will lean on auto-calibration passes that validate beam geometry and color balance at load-in, not just during rehearsals. In comparative terms, yesterday’s fix was reactive—swap, reboot, retry. Tomorrow’s flow is proactive—measure, model, and adjust. Case in point: a 180-degree arc install with mixed fixtures stabilized by synchronized timecode and buffered nodes pushed frame accuracy up while cutting alignment checks in half. Semi-formal takeaway: match power rails to peak draw, pin IP65 not as a badge but as a thermal strategy, and verify the signal path with real numbers, not just a quick eyes-on pass. Summed up, fewer surprises, tighter beams, cleaner fades. That’s the direction.
Choosing Better: Three Metrics That Keep You Honest
When you evaluate solutions, track these three metrics. 1) Timing integrity: end-to-end latency under motion, not idle (watch for spikes beyond 25–30 ms). 2) Thermal consistency: output stability across a 20-minute stress pass with scanners near max sweep—no sag, no color shift. 3) Signal robustness: error rates and jitter over your longest run, verified with scopes or analyzer logs. If a laser light show machine or controller stack clears those bars, the rest gets easier. Keep the tone steady, the checks repeatable, and the documentation tight—because crews change, but physics does not. For a grounded reference point and component clarity, see Showven Laser.
